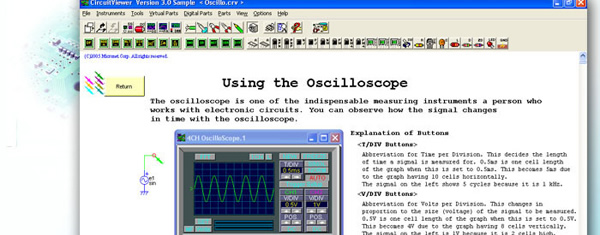

Waveforms are immediately displayed when probes are placed.
The waveform at the position of the probe is displayed when placed on a circuit.
The waveform will change immediately to the probe’s new position after being moved.
Waveforms change when constants change.
Waveforms change when constants change.
Can change immediately to the FFT Analyzer mode
The FFT Analyzer mode will be immediately changed to by clicking the FFT button.
The frequency component of a signal can be viewed in real time.
A current probe function is also available.
Current probes can be used immediately.
While measuring the current its direction is display with an arrow.
The Frequency Analyzer can also be used.
The Frequency Analyzer can also be used to measure the frequency characteristic of the circuit.
It is possible to observe a filter's frequency characteristic in real time.
A Digital Multi-Meter can also be used.
The voltage and current of a circuit can be measured at different points in the circuit.
Other measuring functions include power consumption, amount of charge, junction capacitance and the current probe.
